1. Application:
The products is used for conveying water, oil, gas under normal working condition in the factory, farm, ship, building and family. The hose used for foodstuffs is made of special materials. It is light, flexible, durable, non-toxic, without odor, transparent. It can also be used for conveying milk, beverage, distilled liquor, beer, jam and other foods in vending machines, ice machine and refrigerators, etc.
2. Characteristics:
It is flexible, transparent, durable, non-toxic, without odor, anti-erosion, and adaptable to high pressure condition.
By adding colorful symbol lines on the surface of the hose, it looks more beautiful.
3. Working temperature: -5℃~65℃

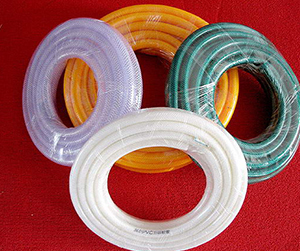

4. Specifications of PVC Fiber Reinforced Hose
British Measurement Metric Measurement W.P. B.P Weight Volume
 I.D. O.D. Length
inch mm m W.P. B.P. Weight Volume
1/4 6 10 100 0.8 2.6 6.8 0.021
5/16 8 12   2.3 9.0 0.023
3/8 10 14  0.6  11.0 0.030
1/2 12 17   2.0 16.0 0.050
5/8 15 20 50  1.5 10.0 0.035
3/4 19 25  0.5 1.4 15 0.047
1 25 31  0.4 1.1 18.0 0.059
1-1/4 32 40 40   25.0 0.148
1-1/2 38 47    33.0 0.160
1-3/4 45 55 30 0.3 1.0 33.0 0.164
2 50 62    44.0 0.28

British Measurement Metric Measurement Length W.P. B.P. Weight Volume British Measurement Metric Measurement Length W.P. B.P. Weight Volume
 I.D. O.D.       I.D. O.D.
inch mm mm m Mpa Mpa kg/roll m3 inch mm mm m Mpa Mpa kg/roll m3
1/5 5 9 168 0.9 3.0 10 0.024 5/8 15 21 87 0.8 1.7 20 0.068
1/4 6 9 180 0.8 2.5 10 0.024  16 20 130 0.6 1.4 20 0.068
 6 10 147 0.9 2.7 10 0.024  16 21 102 0.6 1.8 20 0.068
 6 11 111 1.0 3.0 10 0.024  16 22 83 0.7 1.6 20 0.068
 6 12 87 1.2 3.0 10 0.024 　 18 24 75 0.5 1.4 20 0.093
5/16 8 11.4 143 0.7 2.4 10 0.029 3/4 19 23 112 0.6 1.4 20 0.093
 8 12 118 0.9 2.4 10 0.027  19 24 87 0.6 1.6 20 0.093
 8 13 90 1.0 3.0 10 0.253  19 25 71 0.6 1.5 20 0.093
 8 14 71 1.2 3.2 10 0.027  19 26 60 0.6 1.5 20 0.093
3/8 9 13 107 0.7 2.7 10 0.030 3/4 20 25 83 0.5 1.0 20 0.093
 9 14 82 0.8 3.0 10 0.026  20 26 68 0.5 1.0 20 0.093
3/8 10 13.6 110 0.6 2.4 10 0.026  20 27 57 0.5 1.0 20 0.093
 10 14 98 0.7 2.4 10 0.030 　 22 30 45 0.5 1.2 20 0.093
 10 15 75 0.8 2.5 10 0.028 1 25 30 68 0.5 1.2 20 0.093
 10 16 60 0.9 2.8 10 0.028  25 31 56 0.5 1.2 20 0.093
1/2 12 16 168 0.6 2.0 20 0.064  25 32 47 0.5 1.2 20 0.093
 12 17 130 0.7 2.1 20 0.064 1-1/4 32 39 57 0.5 1.2 35 0.136
 12 17.5 116 0.8 2.4 20 0.064  32 40 49 0.5 1.2 35 0.136
 12 18 105 0.9 2.7 20 0.064  32 41 43 0.5 1.2 35 0.136
1/2 13 17 157 0.5 1.5 20 0.064 1-1/2 38 45 48 0.5 1.2 35 0.134
 13 18 122 0.6 1.8 20 0.064  38 46 42 0.5 1.2 35 0.134
 13 19 98 0.7 2.1 20 0.064  38 47 37 0.5 1.2 35 0.134
 14 19 114 0.5 1.5 20 0.061 　 45 55 47 0.4 1.1 50 0.194
 14 20 92 0.6 1.6 20 0.061 2 50 60 42 0.4 1.1 50 0.230
5/8 15 19.4 125 0.6 1.6 20 0.061  50 62 35 0.4 1.1 50 0.230
 15 20 107 0.7 1.6 20 0.061 　 　 　 　 　 　 　 　

Note: Data in the table is for reference only, when use of the specifications of the line, the line is apart from change, the corresponding wall thickness or m heavy will have corresponding change.
