Ⅰ.Specific Character

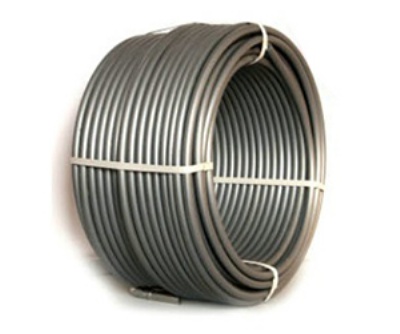

PB Pipe is made of Polybutylenes material which is a resin party of the poly Orephine extracted from Poly Buden-1, it has an outstanding corrosion resistance and chemical resistance, so widely being used for the interior and exterior pipe laying material.

Ⅱ.Advantages:
Creep Nature with Heat Proof Pressure Roof PB Pipe is superior in heating proof due to the using temperature from -20 to the extent of 100, so excellent in creeping that command the durability of product than any other kind of resin.

Sanitary
There is no heavy metal additives in PB pipe and it would not be covered with dirt or contaminated by bacterium. It complies with GB/T17219 and can be used for the potable water pipe.

Impact Resistance
The material itself has a strong elasticity and impact resistance and so possible to protect from freezing broken.

Corrosion Resistance
It is possible to use concrete working, as it shall not be corroded by slat and may use for the burying pipe in the ground, also not to be refused even in the chemical products, so it is suitable to use for the water system since it is excellent in Chlorine resistance in comparison with the other products.

Ⅲ. Application:
For the sanitary pipe laying for hot water supplyCentrifugal heating pipeFor heating of warm floorFor hot spring pipe layingPipe laying of farming gardeningFor industrial purpose as is foods and chemicals.

Ⅳ. Specification:
PN 1.6 MPA
Size(mm)
20*2.0/25*2.3/32*2.9/40*3.7/50*4.6/63*5.8/75*6.8/90*8.2/110*10

PN2.0 MPA
Size(mm)
16*2.0/20*2.3/25*2.8/32*3.6/40*4.5/50*5.6/63*7.1/75*8.4/90*10.1/110*12.3

PN2.5 MPA
Size(mm)
16*2.2/20*2.8/25*3.5/32*4.4/40*5.5/50*6.9/63*8.6/75*10.3/90*12.3/110*15.1
